Model SB: Floatless Valve System

Click to Download Flyer

The Model SB with Floatless Valve System features unmatched winter endurance for single animal access. The entire tub of water is constantly and directly warmed by the wide column of ground heat that prevents freezing of the valve and plumbing, even with zero traffic. Cleaning is easy — lift out the tub, swirl the water and empty it out. The more complex and sensitive floatless valve (not made by Cobett) requires a strainer, even for city water. A diaphragm that senses the water weight activates this valve. The floatless valve comes with a tool to set the water level.

Model SB Waterer:
23.5″ D x 48″ H
Ship Height: 48″
Ship Weight: 64 lbs.

Factory prices are F.O.B. at East Peru, Iowa and subject to change without notice.

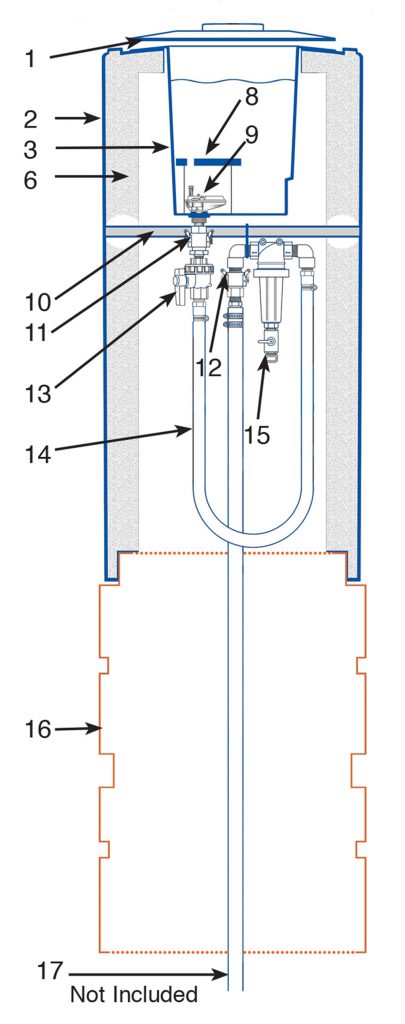

Key:

1. Lid (extended non-use)
2. Model SB Waterer
3. Tub
6. 3” Polyurethane Insulation
8. Valve Guard
9. 1/4″ Floatless Valve
10. Support Rod
11. Quick Coupler & Adapter
12. Quick Coupler & Adapter
13. Ball Valve
14. Flexible Hose
15. Strainer & Flush Valve
16. 36″ Base Tube
17. 1″ Polyethylene Waterline (Not Included)

Gallons: 5

Opening: 11.5”

Side Reach: 6”

Water Level: 2”-3” from top of tub

Drinking Height: 20″ Maximum or less

Waterer, Tub & Float Construction: 1/4” Polyethylene Plastic

Base Tube Construction:
— 3/16” Polyethylene Plastic
— 36” Tube – no insulation
— 61” & 87” Tubes partially insulated – 2” thick

Capacity:
— Dry Lot Beef: 65 Head
— Range Cows: 35 Head

Floatless  Valve

025 – 1/4″ Floatless Valve
Pressure Feed
Clean Water Only
1/4” Orifice
Ballcock Thread
Avg: 40 PSI = 2.25 GPM
Max: 80 PSI = 3.25 GPM



Included:

A.) 17″ Valve Adjuster for floatless valve only

B.) Plumbing Tie Cord

C.) 2″ Screws for SB (4 total)



Optional:

Filter Fabric: FF1010, 15′ x 15′ – $34.00

Ice Chipper: 17″ – IC1010 – $7.00

Base Tube Extensions: 18″ @ $20.00 or 36″ @ $40.00
