Model SB: Float Valve System

Click to Download Flyer

The Model SB with Float Valve System features unmatched winter endurance for single animal access. The entire tub of water is constantly and directly warmed by the wide column of ground heat that prevents freezing of the valve and plumbing, even with zero traffic. Cleaning is easy — lift out the tub, swirl the water and empty it out.

Model SB Waterer:
23.5″ D x 48″ H
Ship Height: 48″
Ship Weight: 64 lbs.

Factory prices are F.O.B. at East Peru, Iowa and subject to change without notice.

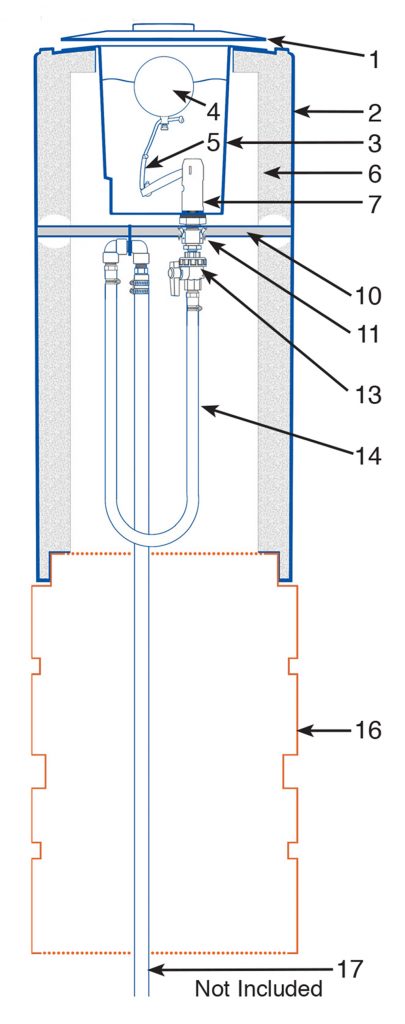

Key:

1. Lid (extended non-use)
2. Model SB Waterer
3. Tub
4. 5 1/2” Polyethylene Float
5. 3/16” Cord and 3/8” Sleeve
6. 3” Polyurethane Insulation
7. 1/2″ HD Valve
10. Support Rod
11. Quick Coupler & Adapter
13. Ball Valve
14. Flexible Hose
16. 36″ Base Tube
17. 1″ Polyethylene Waterline (Not Included)

Gallons: 5

Opening: 11.5”

Side Reach: 6”

Water Level: 2”-3” from top of tub

Drinking Height: 20″ Maximum or less

Waterer, Tub & Float Construction: 1/4” Polyethylene Plastic

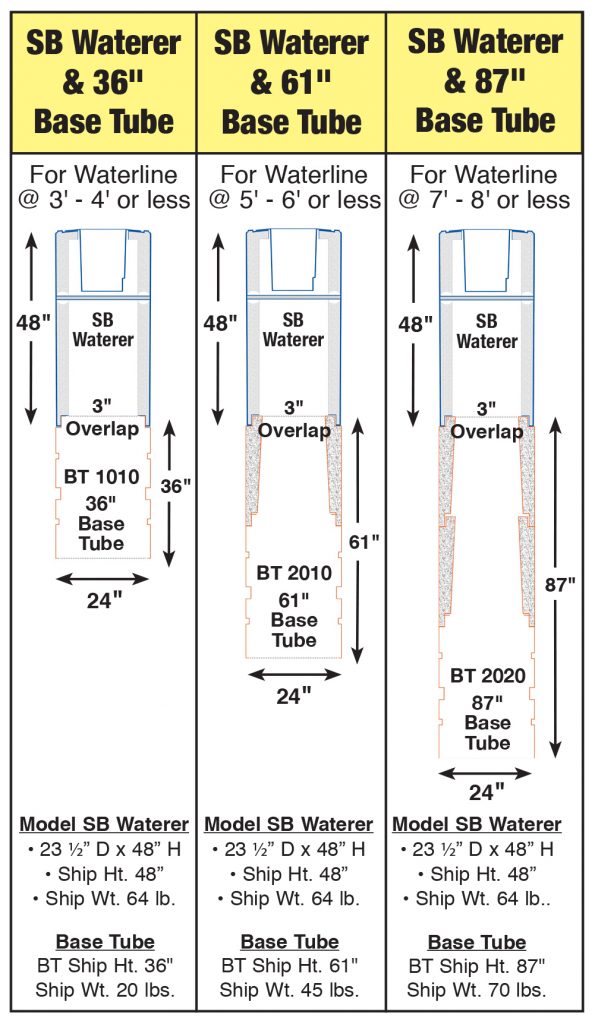

Base Tube Construction:
— 3/16” Polyethylene Plastic
— 36” Tube – no insulation
— 61” & 87” Tubes partially insulated – 2” thick

Capacity:
— Dry Lot Beef: 65 Head
— Range Cows: 35 Head

Valve Options:

375 – 3/8″ HD Valve
Valve Pressure Feed
3/8” Orifice
Inside: 3/4” NPT
Outside: 1 3/8” Bolt Thd.
Avg: 40 PSI = 7 GPM
Max: 120 PSI = 16 GPM



050 – 1/2″ HD Valve
Valve Pressure Feed
1/2” Orifice
Inside: 3/4” NPT
Outside: 1 3/8” Bolt Thd.
Avg: 40 PSI = 10 GPM
Max: 80 PSI = 18 GPM



OR Gravity Feed – Pond
Capacity may be reduced!

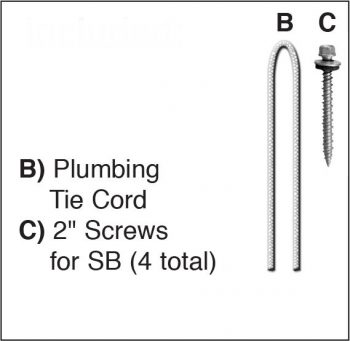

Included:

A.) 17″ Valve Adjuster for floatless valve only

B.) Plumbing Tie Cord

C.) 2″ Screws for SB (4 total)



Optional:

Filter Fabric: FF1010, 15′ x 15′ – $34.00

Ice Chipper: 17″ – IC1010 – $7.00

Base Tube Extensions: 18″ @ $20.00 or 36″ @ $40.00
