Model LB: Float Valve System

Click to Download Flyer

The Model LB with Float Valve System features unmatched winter endurance for two to three head access. The entire tub of water is constantly and directly warmed by the wide column of ground heat that prevents freezing of the valve and plumbing, even with zero traffic. Cleaning is easy — lift out the tub, swirl the water and empty it out.

Model LB Waterer:
29″ D x 48″ H
Ship Height: 49.5″
Ship Weight: 100 lbs.

Factory prices are F.O.B. at East Peru, Iowa and subject to change without notice.

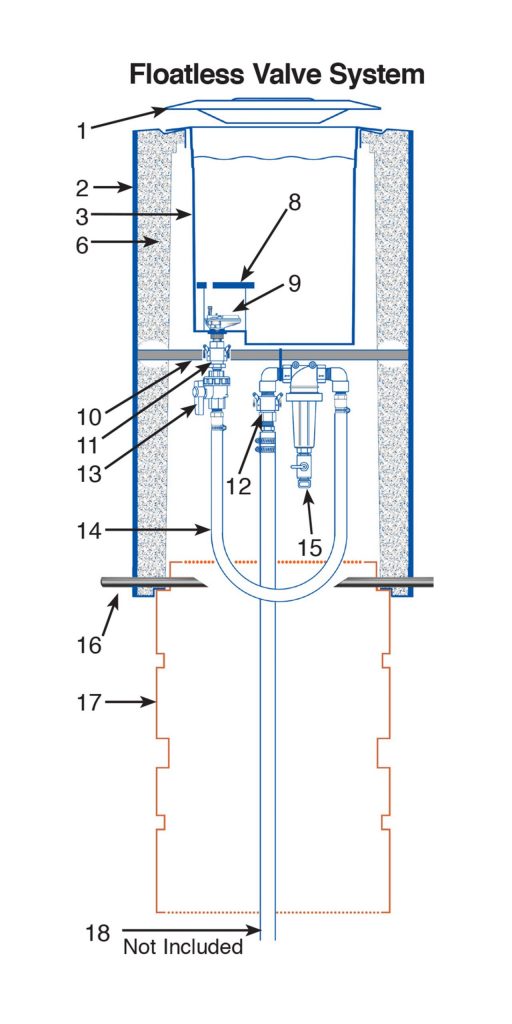

Key:

1. Lid (extended non-use)
2. Model LB Waterer
3. Tub
4. 5 1/2” Polyethylene Float
5. 3/16” Cord and 3/8” Sleeve
6. 3” Polyurethane Insulation
7. 1/2″ HD Valve
10. Support Rod
11. Quick Coupler & Adapter
13. Ball Valve
14. Flexible Hose
16. Anchor Rod
17. 36″ Base Tube
18. 1″ Polyethylene Waterline not included

Gallons: 18

Opening: 17.5”

Side Reach: 6.5”

Water Level: 2”-3” from top of tub

Drinking Height: 20″ Maximum or less

Waterer, Tub & Float Construction: 1/4” Polyethylene Plastic

Base Tube Construction:
— 3/16” Polyethylene Plastic
— 36” Tube – no insulation
— 61” & 87” Tubes partially insulated – 2” thick

Capacity:
— Dry Lot Beef: 200 Head
— Range Cows: 100 Head

Valve Options:

375 – 3/8″ HD Valve
Valve Pressure Feed
3/8” Orifice
Inside: 3/4” NPT
Outside: 1 3/8” Bolt Thd.
Avg: 40 PSI = 7 GPM
Max: 120 PSI = 16 GPM



050 – 1/2″ HD Valve
Valve Pressure Feed
1/2” Orifice
Inside: 3/4” NPT
Outside: 1 3/8” Bolt Thd.
Avg: 40 PSI = 10 GPM
Max: 80 PSI = 18 GPM



100 – 1″ HD Valve
Gravity Feed – Pond
1″ Orifice
1 1/4″ NPT
Max: 20 PSI
Capacity may be reduced!

Included:

A.) 17″ Valve Adjuster for floatless valve only

B.) Plumbing Tie Cord

C.) Anchor Rods for LB (3 total)



Optional:

Filter Fabric: FF1010, 15′ x 15′ – $34.00

Ice Chipper: 17″ – IC1010 – $7.00

Base Tube Extensions: 18″ @ $20.00 or 36″ @ $40.00
